GUI Tutorial (Batch)¶

Overview¶

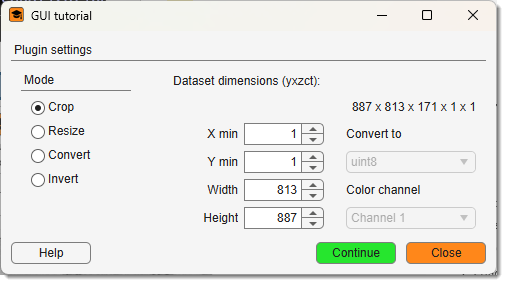

GuiTutorialBatch extends GuiTutorial with full batch-processing support. It performs the same four operations (Crop, Resize, Convert, Invert), but every parameter is stored in a BatchOpt struct so the plugin can run from a Batch Processing protocol, be recorded and replayed as a macro, and run head­less without a GUI.

Access it via Ribbon → Plugins → Tutorials → GuiTutorialBatch. Source: mib/plugins/Tutorials/GuiTutorialBatch/.

Three calling modes¶

utils.startController calls the constructor differently depending on the mode. The constructor inspects nargin and varargin{2}:

% Interactive (from the ribbon):
utils.startController(parentObj, 'plugins.Tutorials.GuiTutorialBatch.GuiTutorialBatch');

% Headless batch:
BatchOpt.OperationButtonGroup = {'cropRadio'};
BatchOpt.xMinEdit   = {10,  [1 50000], 'on'};
BatchOpt.yMinEdit   = {10,  [1 50000], 'on'};
BatchOpt.widthEdit  = {200, [1 50000], 'on'};
BatchOpt.heightEdit = {200, [1 50000], 'on'};
GuiTutorialBatch(mibModel, parentObj, BatchOpt);

The BatchOpt structure¶

BatchOpt is the single source of truth for every tunable parameter. Each field name must exactly match the Tag of its AppDesigner widget (case-sensitive) — the shared sync utilities locate widgets by Tag, so a mismatch silently skips the widget.

% Radio group (Tag = 'OperationButtonGroup')
obj.BatchOpt.OperationButtonGroup{1} = 'cropRadio';
obj.BatchOpt.OperationButtonGroup{2} = {'cropRadio','resizeRadio','convertRadio','invertRadio'};

% Spinners — shared by Crop and Resize. Upper limit 50000 lets Resize upscale.
obj.BatchOpt.xMinEdit   = {1,   [1 50000], 'on'};
obj.BatchOpt.yMinEdit   = {1,   [1 50000], 'on'};
obj.BatchOpt.widthEdit  = {512, [1 50000], 'on'};
obj.BatchOpt.heightEdit = {512, [1 50000], 'on'};

% Dropdowns
obj.BatchOpt.convertDropdown = {'uint8', {'uint8','uint16'}};
obj.BatchOpt.colorDropdown   = {'Channel 1', {'Channel 1'}};   % rebuilt per dataset

obj.BatchOpt.showWaitbar = true;
obj.BatchOpt.id = obj.mibModel.getActiveId();   % NOT a widget; stripped before recording

Batch registration metadata (Step 2)¶

obj.BatchOpt.mibBatchSectionName = 'Ribbon -> Plugins';   % category in the Batch Processing menu
obj.BatchOpt.mibBatchActionName  = 'GuiTutorial Batch';   % label for this action
obj.BatchOpt.mibBatchTooltip.xMinEdit = 'Crop: left edge X coordinate (1-based, pixels)';
% ... one tooltip per field ...

To make the plugin selectable in the Batch Processing dialog, register it in controllers.BatchProcessing.initialize:

obj.Sections(secIndex).Actions(actionId).Name = 'GuiTutorial Batch';
obj.Sections(secIndex).Actions(actionId).Command = ...
    'obj.mibController.startController(''plugins.Tutorials.GuiTutorialBatch.GuiTutorialBatch'', [], Batch);';
actionId = actionId + 1;

Constructor flow¶

The constructor runs four steps: (1) define BatchOpt defaults, (2) set batch metadata, (3) branch into headless/query mode when a 3^rd argument is present, (4) otherwise build the interactive GUI.

if nargin == 3
    BatchOptIn = varargin{2};
    if ~isstruct(BatchOptIn)
        if isscalar(BatchOptIn) && isnan(BatchOptIn)
            obj.returnBatchOpt();               % query mode: advertise parameters
        else
            utils.dlgs.showErrorDialog([], 'A BatchOpt structure is required as the 3rd argument.', 'BatchOpt Error');
            notify(obj.mibModel, 'StopProtocol');
        end
        notify(obj, 'CloseEvent'); return
    end
    % Merge caller fields over defaults (absent fields keep defaults).
    obj.BatchOpt = utils.updateBatchOptCombineFields_Shared(obj.BatchOpt, BatchOptIn);
    obj.normalizeBatchOptForCurrentDataset();   % validate channel list / operation enum
    if isempty(obj.BatchOpt)
        notify(obj.mibModel, 'StopProtocol'); notify(obj, 'CloseEvent'); return;
    end
    obj.Calculate();
    notify(obj, 'CloseEvent');
    return;
end

obj.view = core.ChildView(obj, 'GuiTutorialBatchGUI');
% icon + utils.moveWindowOutside + utils.fontSizeUpdate (see GuiTutorial)
obj.view.gui.CloseRequestFcn = @(~,~) obj.closeWindow();
obj.updateWidgets();
obj.listener{1} = addlistener(obj.mibModel, 'UpdateGuiWidgets', @(s,e) obj.ViewListner_Callback2(obj, s, e));
obj.listener{2} = addlistener(obj.mibModel, 'NewDataset',       @(s,e) obj.ViewListner_Callback2(obj, s, e));

In batch mode obj.view stays []. Every method that touches widgets begins with if isempty(obj.view); return; end, and ViewListner_Callback2 has the same guard.

GUI ↔ BatchOpt synchronisation¶

Unlike GuiTutorial (which writes widget properties directly), the batch plugin keeps BatchOpt and the widgets in sync through two shared utilities:

• updateWidgets updates data-dependent fields (spinner defaults, channel list) then pushes all of BatchOpt into the widgets in one pass:

  obj.view = utils.updateGUIFromBatchOpt_Shared(obj.view, obj.BatchOpt);
  obj.buttonGroup_Callback();   % re-apply enable/disable rules


• updateBatchOptFromGUI pulls a changed widget value back into BatchOpt. Wire it as the ValueChangedFcn of every interactive widget:

  function updateBatchOptFromGUI(obj, event)
      obj.BatchOpt = utils.updateBatchOptFromGUI_Shared(obj.BatchOpt, event.Source);
  end


% every value widget:
function widthEdit_ValueChanged(app, event)
    app.winController.updateBatchOptFromGUI(event);
end
% the radio group — update BatchOpt, then refresh enable states:
function OperationButtonGroup_SelectionChanged(app, event)
    app.winController.updateBatchOptFromGUI(event);
    app.winController.buttonGroup_Callback();
end

Calculate — dispatch + macro recording¶

Calculate is the single entry point shared by the Continue button and headless mode. Each operation method reads its inputs from BatchOpt (not from widgets) and returns a boolean, so a failed run is not recorded.

function Calculate(obj)
    obj.BatchOpt.id = obj.mibModel.getActiveId();   % refresh for headless mode
    id = obj.BatchOpt.id;

    % Guard: this plugin needs in-memory pixels.
    if strcmp(obj.mibModel.I{id}.datasetType, 'Virtual')
        % warn via utils.dlgs.inputUniversalDlg, then:
        notify(obj.mibModel, 'StopProtocol'); return;
    end

    success = false;
    switch obj.BatchOpt.OperationButtonGroup{1}
        case 'cropRadio';    success = obj.cropDataset();
        case 'resizeRadio';  success = obj.resizeDataset();
        case 'convertRadio'; success = obj.convertDataset();
        case 'invertRadio';  success = obj.invertDataset();
    end

    if success
        obj.returnBatchOpt();                 % record in the macro
    elseif isempty(obj.view)
        notify(obj.mibModel, 'StopProtocol'); % headless failure halts the protocol
    end
end

returnBatchOpt strips the session-specific id and fires SyncBatch so the batch controller can record the operation:

function returnBatchOpt(obj, BatchOptOut)
    if nargin < 2; BatchOptOut = obj.BatchOpt; end
    if isfield(BatchOptOut, 'id'); BatchOptOut = rmfield(BatchOptOut, 'id'); end
    notify(obj.mibModel, 'SyncBatch', core.ToggleEventData(BatchOptOut));
end

The four operation methods are the same as in GuiTutorial, with two differences: they read inputs from BatchOpt, and Convert/Invert use core.PoolWaitbar (instead of uiprogressdlg) so progress works in batch mode.

Headless-mode helpers¶

Two private helpers handle the GUI-vs-headless split:

• getDialogParent — returns obj.view.gui in interactive mode, else obj.mibModel.mibGUI. Safe for utils.dlgs.* and uiprogressdlg (both accept an AppContainer), but not for core.PoolWaitbar.
• canShowWaitbar — true only when BatchOpt.showWaitbar is set and a real plugin UIFigure exists. core.PoolWaitbar requires a matlab.ui.Figure, which the AppContainer is not; in batch mode progress is shown by the Batch Processing GUI.
• normalizeBatchOptForCurrentDataset — in headless mode updateWidgets never runs, so this revalidates dynamic fields (channel list, operation enum) after merging the caller's BatchOpt; it sets obj.BatchOpt = [] to signal an unrecoverable error.

Adapting it to your own plugin¶

1. Copy the GuiTutorialBatch/ folder under mib/plugins/<YourSection>/ and rename the folder, the .m, and the .mlapp to <YourName> (class name = folder name).
2. Redefine the BatchOpt fields to match your widgets' Tags, and update the mibBatchTooltip entries.
3. Replace the operation methods with your own logic (keep the boolean return so macro recording works).
4. Wire each widget's ValueChangedFcn to updateBatchOptFromGUI, and the button group additionally to buttonGroup_Callback.
5. Register the action in controllers.BatchProcessing.initialize (see above) if you want it in the Batch Processing dialog.
6. Restart MIB.

Credits¶

Author: Ilya Belevich, University of Helsinki (ilya.belevich@helsinki.fi) · Part of Microscopy Image Browser
