Deep MIB - Train Tab¶

Settings for generating and training deep convolutional networks in Microscopy Image Browser.

Overview¶

The Train tab in Deep MIB contains settings for designing and training deep convolutional networks. before starting, adjust the default settings to your project’s needs and ensure the output network file is specified using the Network filename button in the Network panel.

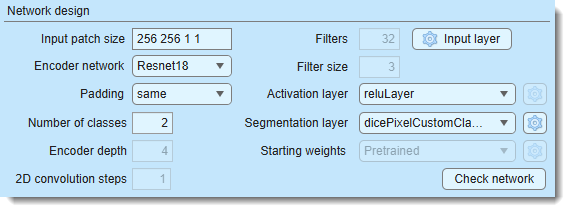

Network design¶

The Network design section configures the network architecture.

• Input patch size... defines the dimensions of image blocks (height, width, depth, colors) for training (e.g., "572 572 1 2" for a 572x572x1 patch with 2 color channels), Define the input patch size based on available GPU memory, desired field of view, dataset size, and channels. For 2.5D networks the depth is the number of neighbouring slices and must be an odd number of 3 or more (e.g., "256 256 3 1"). Patches are randomly sampled, with the count set in Patches per image...
• Encoder network selects the encoder for supported architectures, sorted from lightweight to more complex

• Padding sets convolution padding type:

  • same: adds zero padding to keep input/output sizes equal
  • valid: no padding, reducing output size but minimizing edge artifacts (though same with overlap prediction also reduces artifacts).

  Info

  Press Check network to verify compatibility of the input patch size with the selected padding method

• Number of classes... specifies the total number of materials, including Exterior

• Encoder depth... sets the number of encoding/decoding layers in U-Net, controlling downsampling/upsampling by 2^D. Tweak with Downsampling factor... (Beta version) to adjust patch size
• Filters... defines the number of output channels (filters) in the first encoder stage, doubling per subsequent stage, mirrored in the decoder
• Filter size... sets convolutional filter size (e.g., 3, 5, 7)
• Input layer configures input image normalization settings

• Activation layer selects the activation layer type, with additional settings via the button when available

  list of available activation layers

  Compare activation layers here:
  - reluLayer: Rectified Linear Unit (ReLU) layer, default activation layer
  - leakyReluLayer: Leaky Rectified Linear Unit (ReLU) layer scales negative inputs
  - clippedReluLayer: Clipped Rectified Linear Unit (ReLU) layer performs a threshold operation, where any input value less than zero is set to zero and any value above the clipping ceiling is set to that clipping ceiling
  - eluLayer: Exponential linear unit (ELU) layer exponential nonlinearity for negatives
  - swishLayer: Swish activation layer applies f(x) = x / (1+e^(-x))
  - tanhLayer: Hyperbolic tangent (tanh) layer

• Segmentation layer selects the output layer, with settings via the button when available

  List of available segmentation layers

  • pixelClassificationLayer: cross-entropy loss
  • focalLossLayer: focal loss for class imbalance
  • dicePixelClassificationLayer: generalized Dice loss for class imbalance
  • dicePixelCustomClassificationLayer: modified Dice loss for rare classes

• Starting weights states where the initial weights come from and how much of the network is retrained. The available states are a property of the selected workflow.

  List of available properties

  Network design	Starting weights
  3D Semantic; U-net +Encoder with the Classic encoder; SegNet	None (random)
  DeepLab v3+ / Z2C + DLv3; U-net +Encoder with a Resnet encoder	Pretrained
  2D Patch-wise (Resnet/Xception)	None (random) or ImageNet (user choice)
  2D Instance (SOLOv2)	COCO, frozen then trainable (default), COCO, frozen backbone or COCO, trainable backbone

  • Pretrained means the network starts from an already trained template rather than from scratch. What that template is depends on the design: DeepLab v3+ with a Resnet encoder downloads a MIB-hosted template the first time it is used and asks you to choose the Electron Microscopy or Light microscopy/Pathology variant, whereas the U-net Resnet encoders are fetched from the MIB encoder repository. The downloaded template is cached in the DeepMIB directory (Preferences → External directories) and reused silently from then on, so the choice is a property of your installation and is not stored in the configuration file.

  • ImageNet applies to the 2D Patch-wise classification networks and requires the MATLAB version of MIB plus the matching support package; it is not offered in the standalone version.

  • For SOLOv2 the network always starts from COCO weights, and the choice is what happens to the backbone. The two single-phase states want different learning rates, which is why the default combines them:

    • COCO, frozen then trainable (default, recommended) runs training in two phases automatically. The backbone is held fixed while the heads learn, then it is unfrozen and training continues from that network at a much lower rate so the features adapt to microscopy data. Nothing has to be restarted by hand.

    • COCO, frozen backbone holds the COCO features fixed for the whole run. Fast, and the safest choice on a very small number of annotated images.

    • COCO, trainable backbone unfreezes from the very start. Only use it deliberately, and only with the learning rate already lowered - see the warning below.

    The two phases need different learning rates: the heads start from random weights and have a long way to travel, while the COCO backbone is already good and only tolerates small steps. Phase 2 therefore uses its own rate, set in the settings dialog below.

    The epoch budget is not increased: whatever the frozen phase leaves unused is handed to the trainable phase, so MaxEpochs still describes the whole run. Each phase draws its own progress plot, and the exported .score and CSV files contain one continuous curve across both.

    At the moment of the switch the frozen-phase network is always written to <Results>/ScoreNetwork/net_checkpoint__frozenPhaseEnd_<iterations>__<timestamp>.mat, whether or not Save checkpoint networks is enabled.

  SOLOv2 needs a small initial learning rate - use 0.001

  The Initial learn rate tooltip quotes two MATLAB defaults: 0.01 for the sgdm solver and 0.001 for adam. DeepMIB uses adam, so 0.001 is the one that applies.

  Above about 0.003 the network collapses and never recovers, whether the backbone is frozen or not. The symptom is easy to recognise: the loss drops for a few hundred iterations, then sits flat at a high value, and the validation mAP stays at 0.000 for the whole run - nothing is detected at all.

  If this happens, lower the learning rate and start again. Unfreezing the backbone cannot repair it.

  Collapse detection

  A collapsed run and a finished one both show a flat loss curve, so COCO, frozen then trainable also watches the validation mAP. If it stays at 0.000 for several evaluations in a row the run is treated as failed: it stops instead of moving to the trainable phase, and a dialog explains what to change.

  Collapse evaluations in the dialog sets how many (default 8, 0 turns the check off). It needs a validation set and the custom training progress window.

  Starting weights settings

  The button next to the dropdown is enabled for COCO, frozen then trainable and configures the schedule:

  Setting	Default	Meaning
  Minimum frozen share	0.07	No switch happens before this share of the total epochs
  Maximum frozen share	0.15	The switch happens no later than this
  Plateau window	25 epochs	The mean loss of the last window is compared with the window before it
  Plateau tolerance	0.01	Below 1% improvement between those windows, the loss counts as flat
  Trainable phase learn rate	1e-4	The learning rate phase 2 runs at, capped at the initial rate
  Collapse evaluations	8	Abandon the run after this many consecutive validation evaluations with a zero mAP; 0 disables the check

• Check network previews and validates the network (limited info in standalone MIB)

  Snapshots of the network check window for the MATLAB and standalone versions of MIB

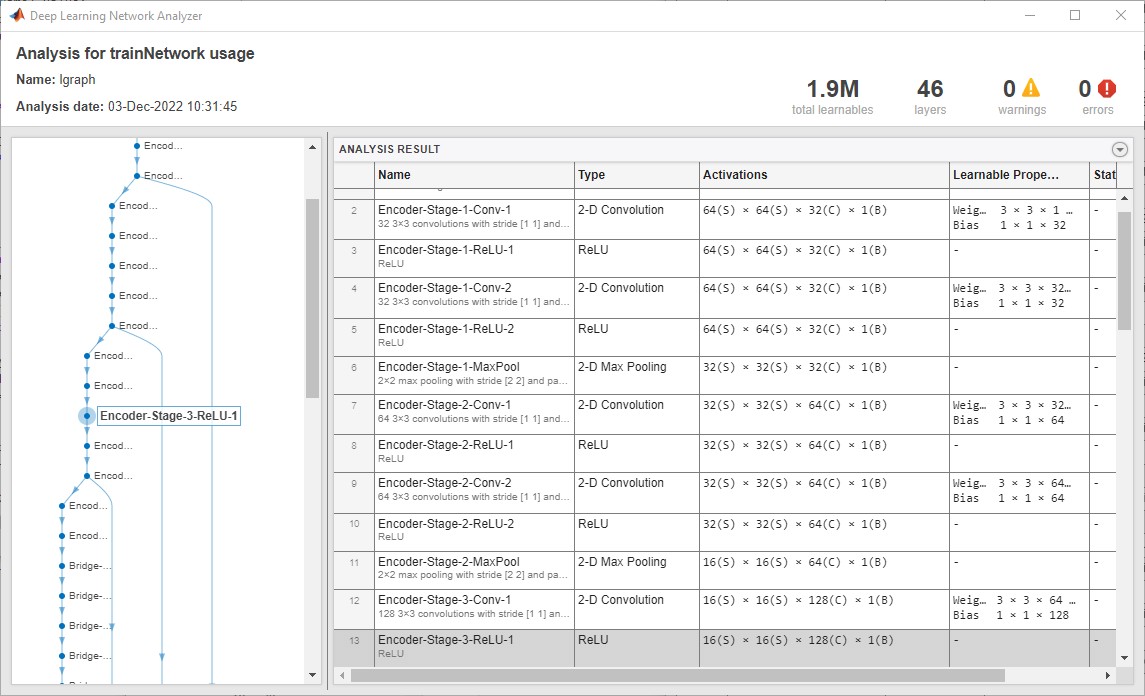

  MATLAB version:

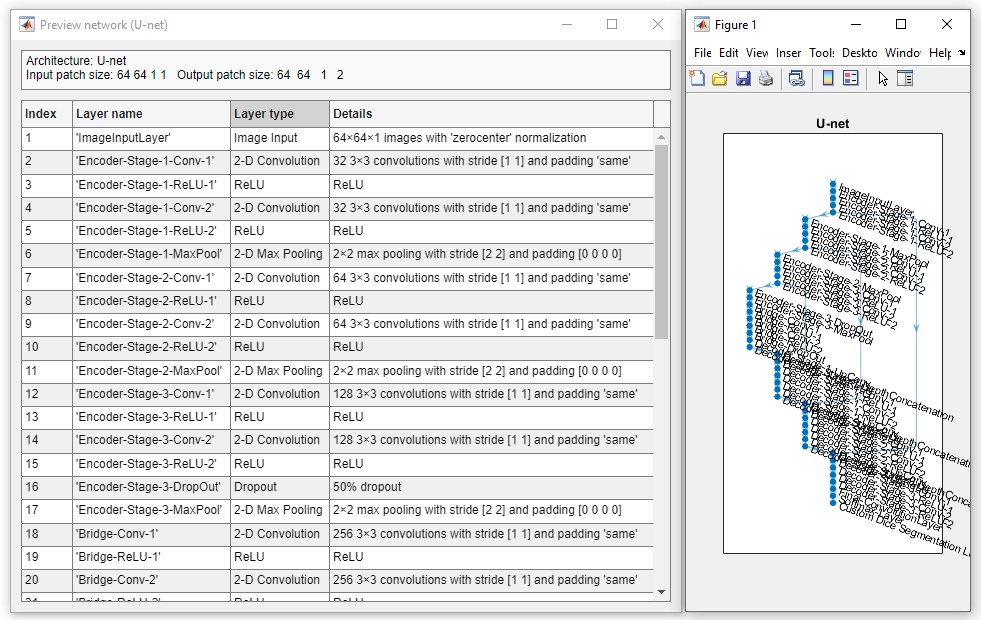

  Standalone version:



Augmentation design¶

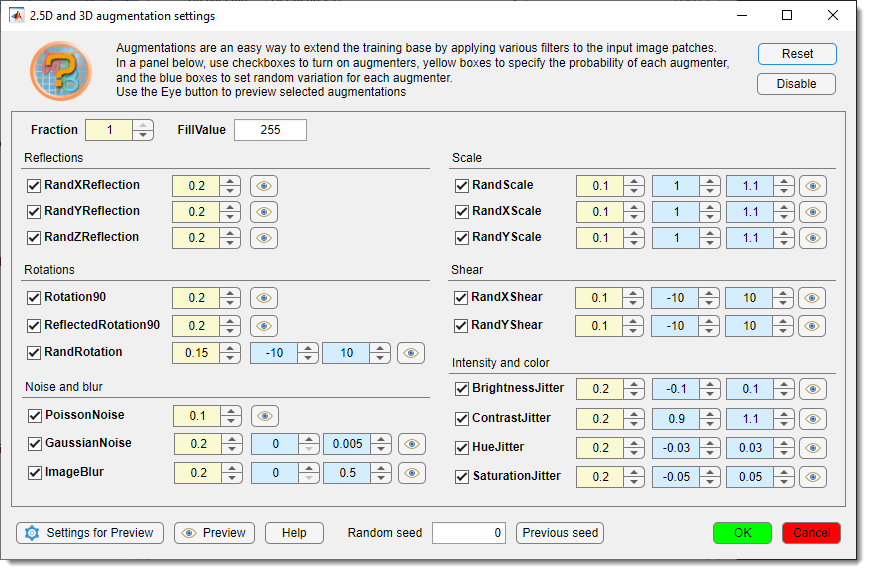

Augmentation enhances training data with image processing filters (17 for 2D, 18 for 3D networks), configurable via buttons next to Augmentation.

• Augmentation: enables augmentation of input patches
• 2D: sets augmentation for 2D networks (17 operations)
• 3D: sets augmentation for 3D networks (18 operations)

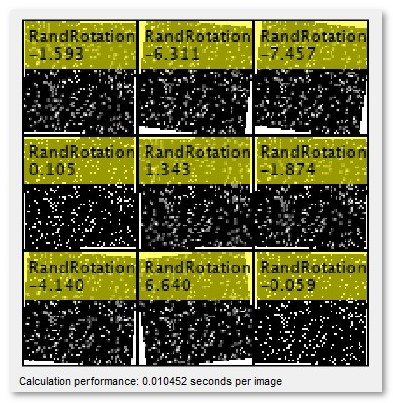

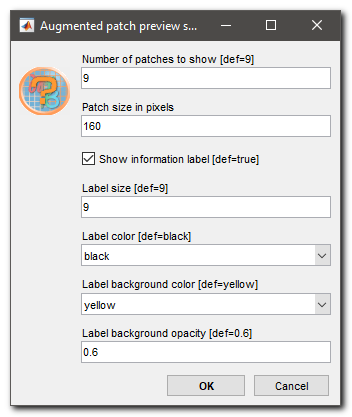

  Specify the fraction of patches to augment, plus probability and variation per filter. Multiple filters may apply to a patch based on probability.

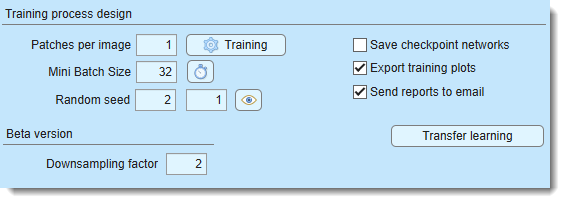

Training process design¶

The Training process design section configures the training process, started with Train.

• Patches per image... sets patches per image/dataset per epoch. Use 1 patch with many epochs and Shuffling: every-epoch (via Training) for best results, or adjust as needed

• Mini Batch Size... number of patches processed simultaneously, limited by GPU memory. Loss is averaged across the batch

  Finding a good mini-batch size

  A larger mini-batch normally trains faster, until it no longer fits in GPU memory - after which training slows down dramatically instead of stopping with an error.

  The T button next to the field measures this for you, for any workflow. It trains the current network on randomly generated patches for a few iterations at each mini-batch size and reports how many patches per second each one manages; the best value is where that number peaks. Your images are not used and nothing is written to the project.

  For instance segmentation the generated patches are given as many objects as your own labels contain, since that is what drives the cost - the label maps are sampled to find out, the images still are not read.

  You are asked which size to start from (1 by default). Testing doubles from there and stops once throughput starts dropping, so raising the start value skips small sizes that cannot win and shortens the test. Large patches can still take a few minutes.

  The result table also gives epochs/hour for each size, together with an estimate of how long the configured Max epochs would take. Use it to check the run is affordable before starting it.

  The suggested value is slightly optimistic, because a real run also holds the validation set and the augmented patches in memory. If a run using it slows down or fails, drop to the next size down.

  • Random seeds for training and validation... seeds the random number generator for training initialization (use any fixed value except 0 for reproducibility, otherwise use 0 for random initialization each training attempt). Training patches are re-sampled every epoch either way - this seed only fixes the sequence they are drawn in
  Random seed for the valication patches

  Validation seed... seeds the validation patches, separately from the training seed above

  The two want opposite things. Training benefits from fresh patches every epoch; validation only means something if the patches do not move, because a loss measured on different crops each time reports which crops were drawn as much as how good the network is - and OutputNetwork: best-validation-loss then picks the luckiest draw rather than the best network.

  Validation patches are re-cropped on every pass by default, in all workflows that crop patches. With a non-zero value the same patches are used at every evaluation, so the curve is comparable point to point. Use 0 to restore the previous behaviour of fresh random validation patches at every evaluation.

  Workflow	What the seed does
  2D / 2.5D / 3D Semantic	The validation patches are extracted once under this seed and replayed at every evaluation
  2D Instance	Every validation image is always cropped at the same windows
  2D Patch-wise	Nothing - validation uses whole images from a fixed file list and never moves

  The button beside the seed inspects the patches that seed produces, so a seed can be judged before spending a training run on it. A draw that lands mostly on background makes the validation loss a poor guide, and OutputNetwork: best-validation-loss then selects against a set that does not represent the data - press the button, look, change the seed, look again.

  It first asks how many patches the validation set holds and offers two ways to look:

  • Show collage - a montage of the first patches in the set. It uses the same appearance settings as the augmentation preview (Augmentation → 2D/3D → ): number of images, display size, and the label font and colours. Labels show the source and, for 2D Instance, how many annotated objects the patch contains - the quickest way to spot a patch that is nearly empty.

  • Export to disk - every validation patch written at 100% magnification to <Results>/ScoreNetwork/ValidationPatches, as an image (<index>_<source>.tif) plus a MIB model of its labels (Labels_<index>_<source>.model). Open the pair in MIB to check the annotations at full resolution. For 2D Instance each object gets its own index in the model, exactly as instance predictions are stored.

  Both options show a progress dialog that can be cancelled. Cancelling an export keeps the patches already written and reports how many of the total were done.

  With a seed of 0 both options give one example draw, since the patches are re-cropped at every evaluation.

  Class names in exported semantic models

  Semantic exports label their materials Class01, Class02, … rather than the names from your model file. The label indices are correct, only the names are generic. If a validation label set cannot be read, the images are still exported and the models are skipped.

  How many validation patches there are

  Patches per image... applies to the validation images as well, so the validation set holds patches per image x number of validation images observations. With only a handful of validation images, raising Patches per image is the cheapest way to make the validation curve less noisy.

  The semantic patches are held in memory

  Freezing the semantic validation set means keeping every validation patch in RAM for the whole run. Deep MIB reports the size on the console when it does so, and backs out with a warning above 2 GB, leaving the patches randomised rather than risking the run. Lower Patches per image or use fewer validation images if you hit that.

• Training sets multiple parameters (see trainingOptions).

  Tip

  set Plots to "none" for up to 25% faster training

• Save checkpoint networks saves checkpoints after each epoch to <Results>/ScoreNetwork. Resume training from checkpoints via a dialog. In R2022a or newer, it is possible to adjust frequency for saving checkpoints

  What a new run clears, and what it keeps

  Choosing Start new training in the resume dialog deletes only the checkpoint networks (net_checkpoint__*.mat). MATLAB names those after the iteration alone, so they accumulate across runs at tens of MB each and would otherwise fill the restore dialog.

  Score, CSV, PNG and FIG exports are kept. Every one of them is written with a <yyMMddHHmm>_<network name> prefix, so runs cannot overwrite each other and the history of a project stays in the folder.

• Export training plots saves accuracy/loss scores to <Results>/ScoreNetwork in .score (MATLAB) and CSV formats, using the network filename. When the Deep MIB progress window is in use, a .png snapshot of it and a reopenable .fig are written alongside them when training finishes

• Send reports to email emails progress/finish updates. configure SMTP settings via the checkbox

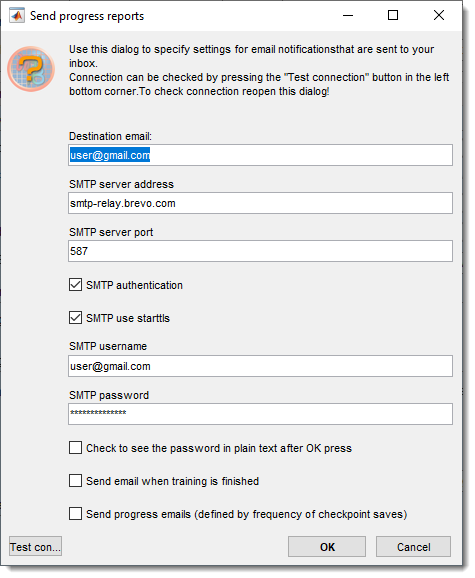

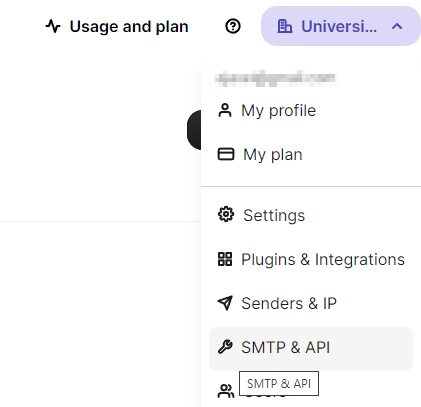

Configuration of email notifications¶

Start the training process¶

Click Train to begin. If a network file already exists in Network filename..., a dialog offers to resume training.
A .mibCfg config file is saved in the same directory, loadable via Options tab → Config files → Load.

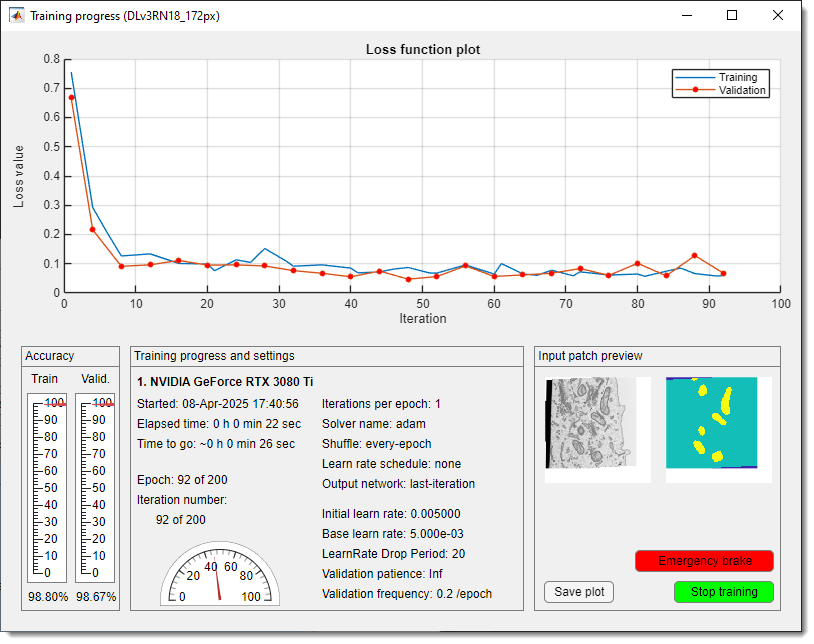

During training, a loss function plot appears (blue = training, red = validation), with accuracy gauges at the bottom left. Perform over the plot to scale it via a context menu.
Stop training with Stop or Emergency brake (faster but may not finalize networks with batch normalization).

By default, Deep MIB uses a custom progress plot. If you want to use default MATLAB’s training plot (MATLAB version only), uncheck Options tab → Custom training plot → Custom training progress window.

The Training progress and settings panel reports four timings: when the run Started, the Elapsed time, the estimated Time to go, and Time/epoch - the average time one epoch has taken so far. Use the last one to check that the configured Max epochs is affordable before leaving a run overnight: multiply it by the epochs remaining. Hover it to see the time per iteration.

Disable plots for speed via Train tab → Training → Plots → none.
Preview patches (bottom right) reduce performance; adjust frequency in Options tab → Custom training plot → Preview image patches and Fraction of images for preview (1 = all, 0.01 = 1%).

After training, the network and config files are saved to the location in Network filename....
