Multi-Rename Tool

Back to MIB | User Interface | Plugins | File processing

The Multi-Rename Tool plugin in Microscopy Image Browser (MIB) is a utility for batch renaming files, such as images or datasets, using customizable templates. It simplifies organizing large file sets by applying consistent naming rules.

Overview

Image converter

The plugin enables efficient renaming of multiple files with options for templates, counters, and text replacement. It’s ideal for preparing datasets for MIB analysis or ensuring standardized naming conventions.

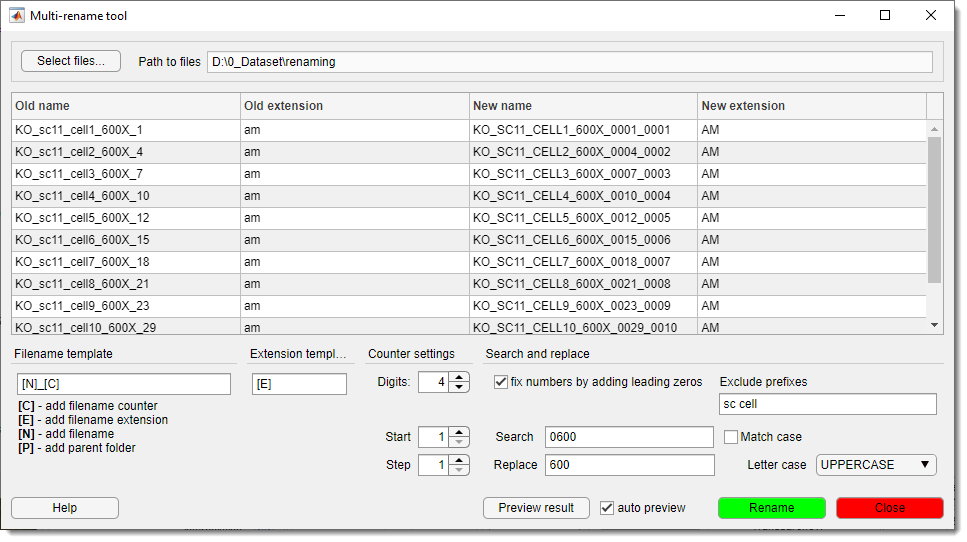

Multi Rename Tool demo

Key Features

  • Apply customizable templates to define filename structures.
  • Add counters with specified digits, start values, and increments.
  • Search and replace text within filenames.
  • Adjust filename case (uppercase, lowercase, or unchanged).
  • Standardize numbers by adding leading zeros to match a digit count.

Usage

Access the plugin via: Menu → Plugins → File Processing → Multi Rename Tool.

Follow these steps to rename files:

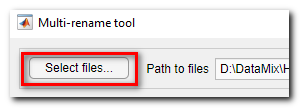

Select Files

Image converter Click Select files… to choose files for renaming. Selected filenames appear in the file list table, showing original and proposed names.

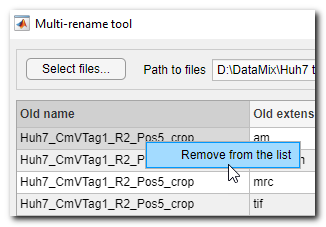

Context Menu for File List

Image converter Right-click the file list table to open a context menu:

  • Remove from the list: remove selected files.

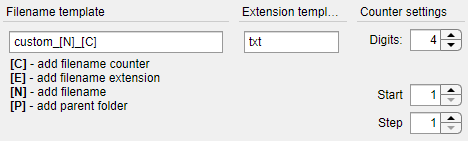

Define Filename Template

Use the Filename template edit box to set a naming pattern with placeholders:

  • [C]: adds a counter (configured in Counter Settings).
  • [E]: keeps the original file extension (e.g., tif, jpg).
  • [N]: includes the original filename (without extension).
  • [P]: adds the parent folder name.
Example

A template like custom_[N]_[C] with extension txt might rename image.doc to custom_image_001.txt. Image converter

Info

Configure counter settings (digits, start, step) to control [C] behavior.

Set Extension Template

Use the Extension template edit box to change file extensions (e.g., to jpg) or use [E] to retain originals.

Configure Counter Settings

Adjust in the Counter Settings panel:

  • Digits: number of digits (e.g., 3 for 001).
  • Start: starting value (e.g., 1).
  • Step: increment (e.g., 1 for 001, 002; 2 for 001, 003).
Search and Replace

Image converter

Fine-tune filenames:

  • Search: text pattern to find.
  • Replace: replacement the found pattern with a new text.
  • Match Case: enable for case-sensitive search.
  • Letter Case: select unchanged, UPPERCASE, or lowercase to change letter case.
Fix Numbers

Image converter

  • Enable Fix numbers by adding leading zeros to standardize numbers (e.g., 1 to 001 for 3 digits).
  • Use Exclude prefixes to skip numbers following specific prefixes.
Preview Results

Click Preview to update the table with proposed filenames.

Note

Review the preview to avoid errors. Adjust settings and re-preview if needed.

Tip

Use the auto preview checkbox to interactively follow the changes.

Rename Files

Press Rename to apply changes to the files.
