mibAddScaleBar.m File Reference

I = mibAddScaleBar(I, pixSize, scale, orientation, scaleBarHeight) add a scale bar to the image. Requires insertText and insertMarker functions from the Computer Vision System Toolbox. When these functions are not available is using an old function. More...

Functions
function I =	mibAddScaleBar (I, pixSize, scale, Options)
	I = mibAddScaleBar(I, pixSize, scale, orientation, scaleBarHeight) add a scale bar to the image. Requires insertText and insertMarker functions from the Computer Vision System Toolbox. When these functions are not available is using an old function.

Detailed Description

I = mibAddScaleBar(I, pixSize, scale, orientation, scaleBarHeight) add a scale bar to the image. Requires insertText and insertMarker functions from the Computer Vision System Toolbox. When these functions are not available is using an old function.

Function Documentation

mibAddScaleBar()

function I = mibAddScaleBar	(		I,
			pixSize,
			scale,
			Options )

I = mibAddScaleBar(I, pixSize, scale, orientation, scaleBarHeight) add a scale bar to the image. Requires insertText and insertMarker functions from the Computer Vision System Toolbox. When these functions are not available is using an old function.

Parameters

I	RGB image that requires the scale bar
pixSize	a structure with pixel size of the image, .x, .y, .z
scale	scaling factor, i.e. how the pixel size is different from the pixSize structure
Options	an optional structure with additional settings .orientation - orientation of the snapshot: 1, 2, 4 (default) .scaleBarHeight - height of the scale bar in pixels, minimal height is 22 pixels, default = [] .bgColor - background color, a single number from 0 (black) to 1 (while), default = 0 .textSuffix - string, additional text that should be added after the scale text

Required fields of Options:

Required fields of pixSize:

Examples:

I = mibAddScaleBar(I, pixSize, scale);      // add scalebar

References mibAddText2Img_Legacy(), and min.

Referenced by mibMakeMovieController.continueBtn_Callback(), mibMeasure.DistanceFun(), mibMeasure.DistancePolyFun(), and mibSnapshotController.snapshotBtn_Callback().

Here is the call graph for this function:

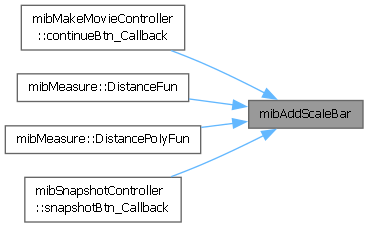

Here is the caller graph for this function:
